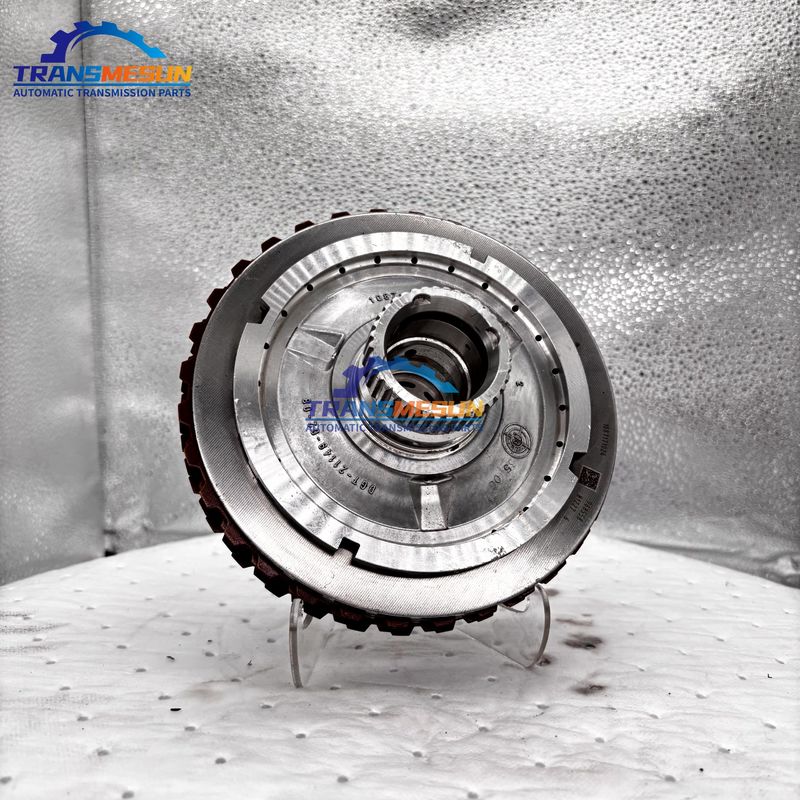

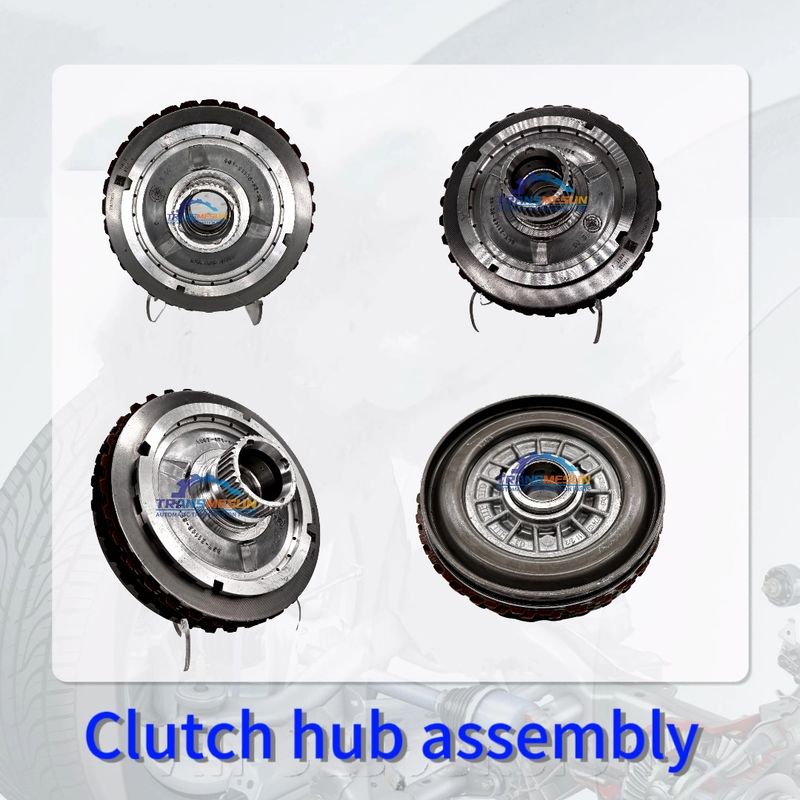

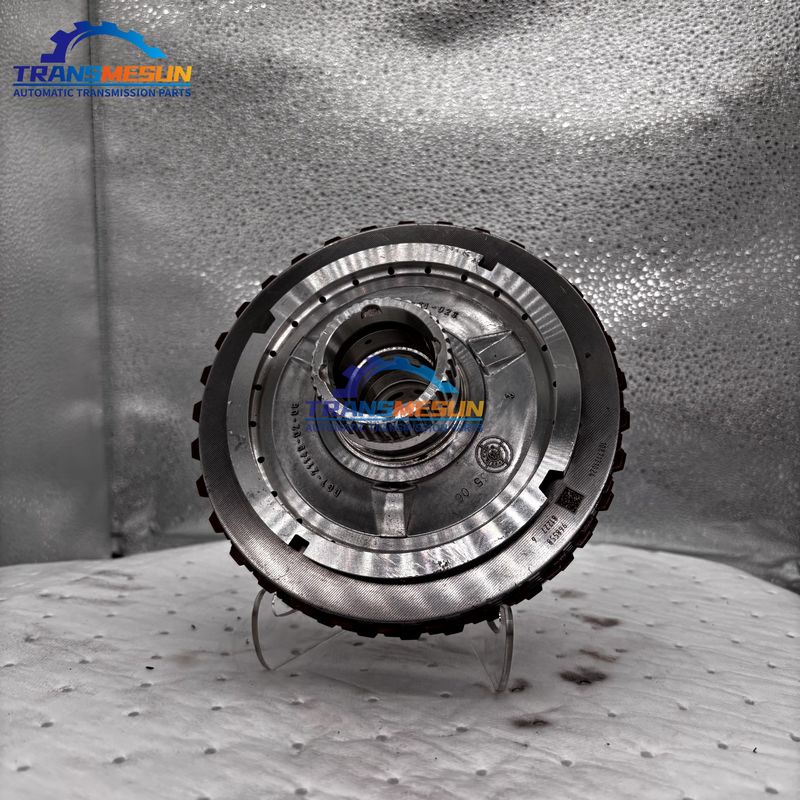

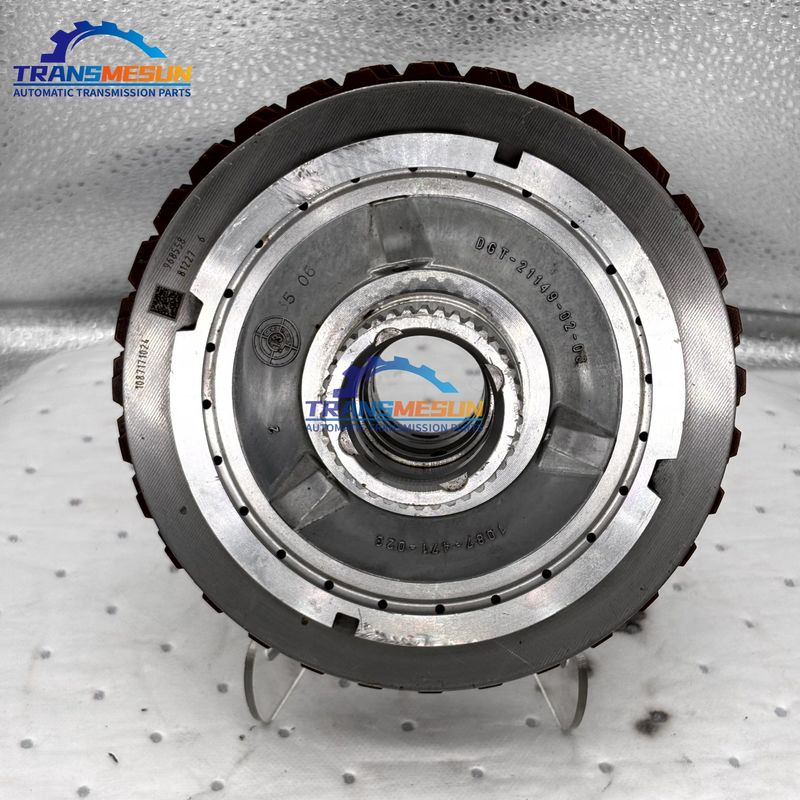

Audi E tipi debriyaj göbeği tertibatı ZF 8HP55A 38 spline ve eşleşen dişliler
Ürün Özetleri
Key Specifications: Spline Design: 38 involute splines (12° pressure angle) with 0.8–1.2µm hardened surface finish for gear engagement Material: Case-hardened 20MnCr5 steel (58–62 HRC core, 850HV surface) Gear Match: Mated to planetary carrier with 0.02–0.05mm backlash tolerance Critical Functions: Transmits 320Nm in 2nd/4th/6th gears Oil passages for clutch cooling (flow rate: 4–6 L/min) Failure Modes: Spline fretting (if backlash exceeds 0.1mm) Lubrication starvation marks
Temel özellikler
Marka Adı:
AUDI
Model numarası:
8hp-55a; 0bk
Ticaret Mülkleri
Asgari sipariş miktarı:
1
Fiyat:
0-1000
Ödeme şartları:
T/T
Ürün Tanımı
Anahtar Özellikler:
-
Spline Tasarımı: Dişli kavraması için 0,8–1,2µm sertleştirilmiş yüzey finisajlı 38 involute spline (12° basınç açısı)
-
Malzeme: Kutu sertleştirilmiş 20MnCr5 çeliği (58–62 HRC çekirdek, 850HV yüzey)
-
Dişli Eşleşmesi: 0,02–0,05mm boşluk toleransıyla planet taşıyıcıya eşleştirilmiştir
-
Kritik Fonksiyonlar:
-
2./4./6. viteslerde 320Nm iletim
-
Debriyaj soğutması için yağ geçişleri (akış hızı: 4–6 L/dak)
-
-
Arıza Modları:
-
Spline sürtünmesi (boşluk 0,1 mm'yi aşarsa)
-
>120°C'de yağlama yetersizliği izleri
-
Not: 6000+ vites döngüsü için %15 daha geniş spline tabanına sahip 8HP45'ten güncellenmiştir. ZF onaylı sürtünme değiştirici katkı maddeleri gerektirir.
Ürün Ayrıntıları
Vurgulamak:
Audi E type clutch hub assembly
,ZF 8HP55A transmission gears
,38 spline clutch hub
Year：:
2010-2017
MODEL：:
8hp-55a; 0bk
SIZE::
15x15x15cm
Brand：:
AUDI
Item Weight::
3kg
ＯＥＮＯ:
1087471023
Applicable Brand::
2016-2018 RS6 2014-2018 RS7 2013-2017 S8
Mrs. Kinny
Foreign trade Manager
- E-posta: admin@transmesun.com
- Tel: +8618665691829
- whatsapp: 8618665691829
-
WeChat:
+8618665691829
