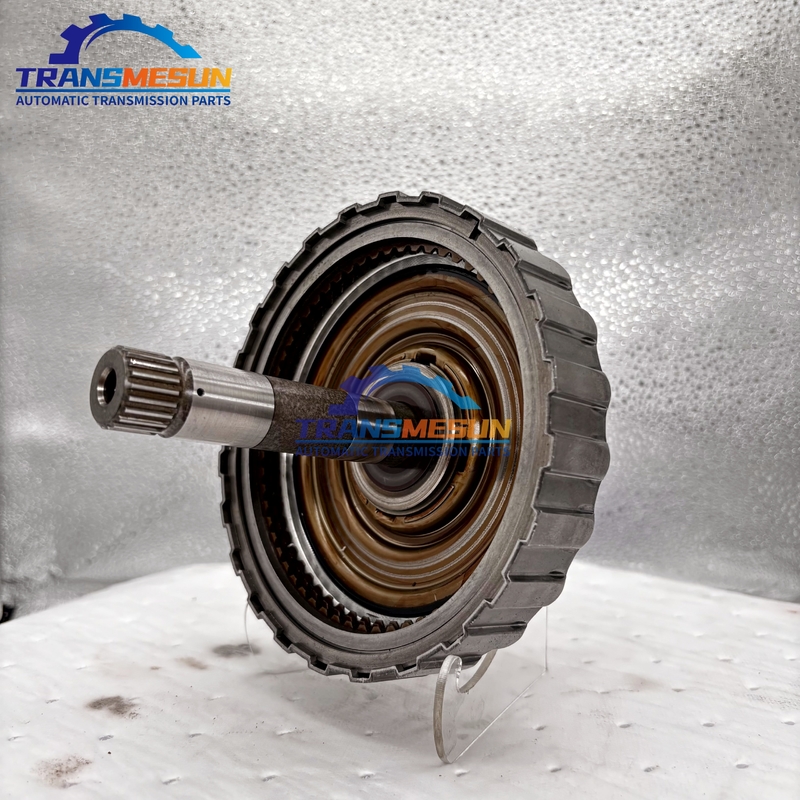

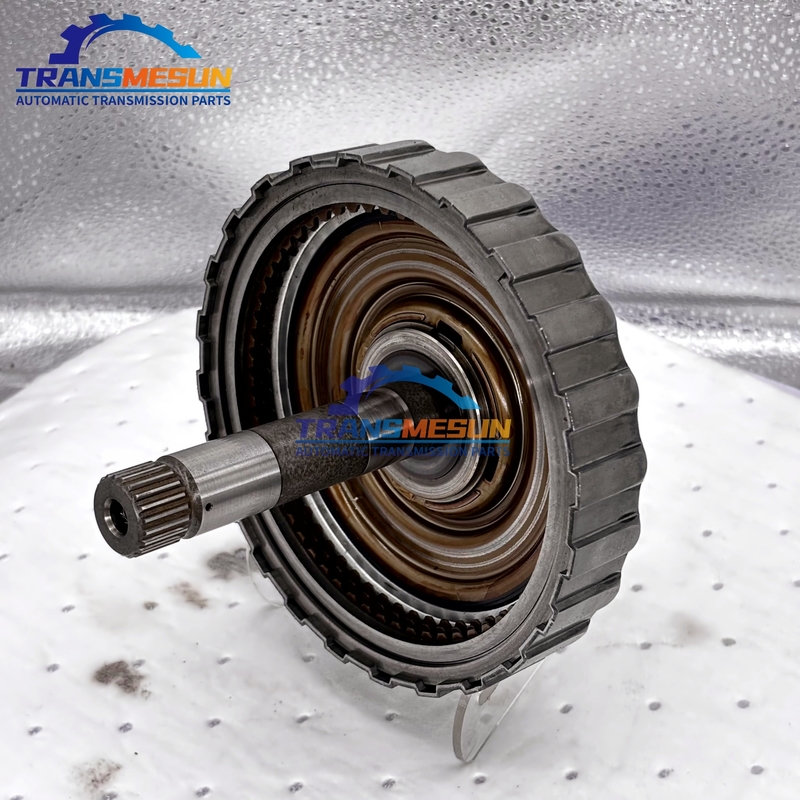

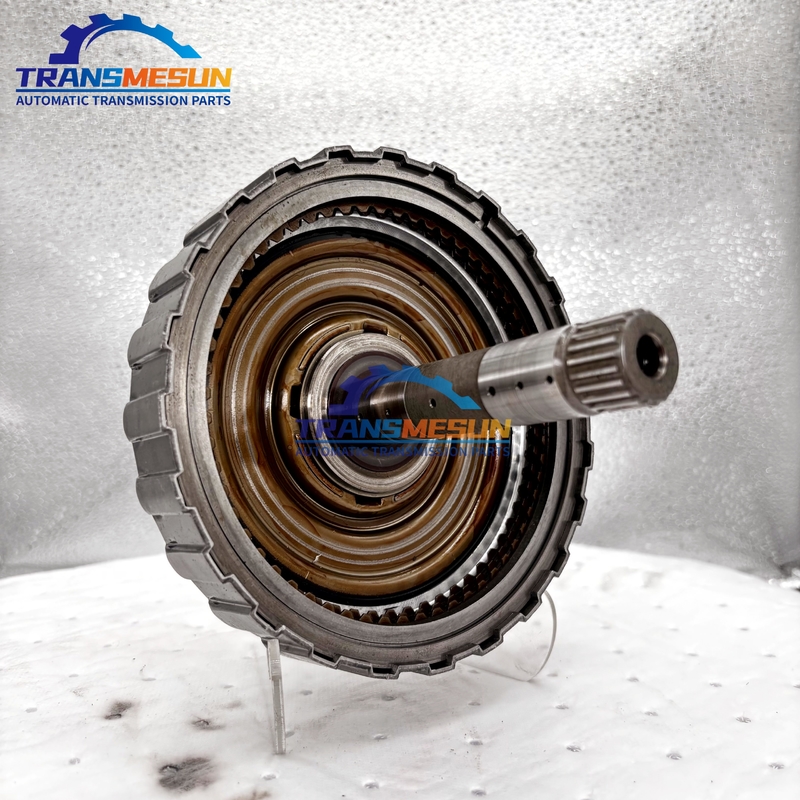

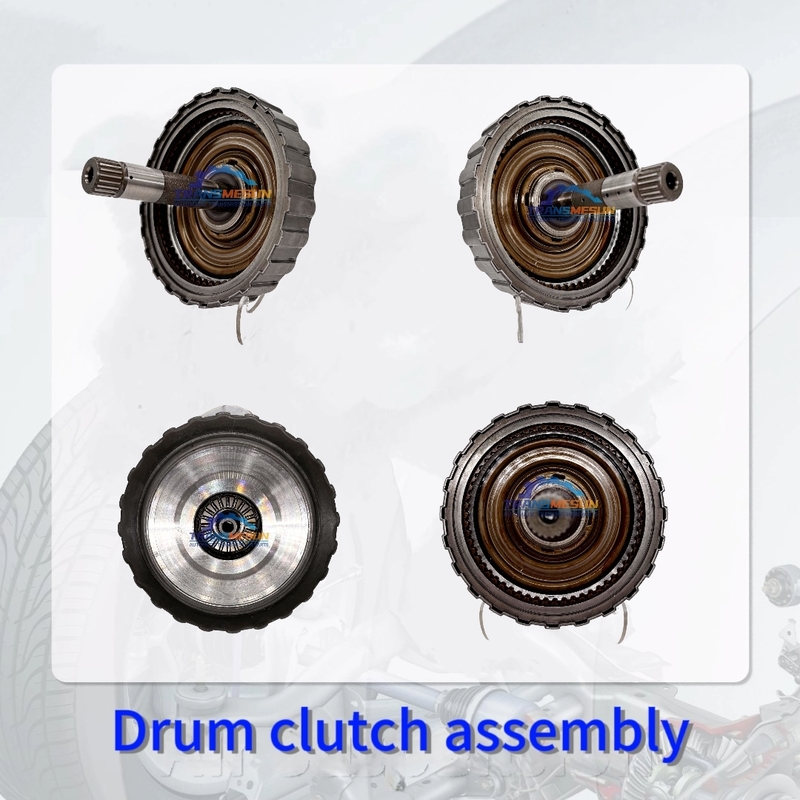

AWTF60SN şanzıman 4-5-6 K2 debriyaj tamburu 4 debriyaj 15 spline şaft debriyaj montajı
Ürün Özetleri
Application: ZF 6HP/8HP or similar, handling 4th-6th gear shifts under high torque (500–700Nm). Design: 15-spline hardened steel shaft (SAE 4140, 60–64 HRC) for direct hub engagement. 4-clutch pack (3 friction + 4 steel plates, 0.5–0.7mm clearance new). Critical Specs: Drum OD: 120–125mm, anodized for thermal resistance (max 200°C). Spline tolerance: ±0.03mm (wear >0.1mm causes slippage). Failure Modes: Spline shear (fatigue under abrupt shifts). Drum warping (overheat cycles
Temel özellikler
Marka Adı:
Volkswagen Passat
Model numarası:
AWTF60SN
Ticaret Mülkleri
Asgari sipariş miktarı:
1
Fiyat:
0-1000
Ödeme şartları:
T/T
Ürün Tanımı
-
Uygulama: ZF 6HP/8HP veya benzeri, yüksek tork altında (500–700Nm) 4. ila 6. vites geçişlerini yönetir.
-
Tasarım:
-
15 dişli sertleştirilmiş çelik mil (SAE 4140, 60–64 HRC), doğrudan göbek bağlantısı için.
-
4-kavramalı paket (3 sürtünme + 4 çelik plaka, yeni 0.5–0.7mm boşluk).
-
-
Kritik Özellikler:
-
Tambur Dış Çapı: 120–125mm, termal dirence karşı anodize edilmiş (maks. 200°C).
-
Dişli toleransı: ±0.03mm (aşınma >0.1mm kaymaya neden olur).
-
-
Arıza Modları:
-
Dişli kesmesi (ani vites değişimleri altında yorulma).
-
Tambur eğilmesi (aşırı ısınma döngüleri).
-
Conta patlaması (takviye aşamasında basınç kaybı).
-
Not: Gerektirir düşük viskoziteli ATF (örneğin, ZF LG8) optimum debriyaj modülasyonu için.
Ürün Ayrıntıları
Year：:
2007-
MODEL：:
AWTF60SN
SIZE::
15X15X15CM
Brand：:
Volkswagen Passat
Item Weight::
2.5kg
ＯＥＮＯ:
09G 09M 09K AWTF60SN
Applicable Brand::
Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini
